Your present location: HOME>>PRODUCTS>>Spherical Roller Bearing

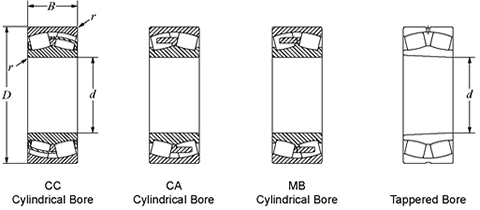

TONJO Spherical roller bearings

Designation		Principal dimensions				Basic load ratings		Mass
Designation		d	D	B	r	Dynamic	Static	Mass
Cylindrical bore	Tapered bore	mm			min	Cr (kN)	C0r (kN)	kg

22205 CC	22205 CCK	25	52	18	1	35.7	35	0.18
22205 E	22205 EK	25	52	18	1	42	43	0.18
21305 CC	-	25	62	17	1.1	41	41	0.25
22206 CC	22206 CCK	30	62	20	1	47	50	0.28
22206 E	22206 EK	30	62	20	1	60	63	0.28
21306 CC	-	30	72	19	1.1	55	60	0.38
22207 CC	22207 CCK	35	72	23	1.1	66	72	0.43
22207 E	22207 EK	35	72	23	1.1	77	85	0.43
21307 CC	-	35	80	21	1.5	64	71	0.51
22208 CC	22208 CCK	40	80	23	1.1	73	81	0.52
22208 E	22208 EK	40	80	23	1.1	89	97	0.52
21308 CC	21308 CCK	40	90	23	1.5	80	96	0.71
22308 CC	22308 CCK	40	90	33	1.5	110	115	1
22308 E	22308 EK	40	90	33	1.5	122	133	1
22209 CC	22209 CCK	45	85	23	1.1	77	88	0.56
22209 E	22209 EK	45	85	23	1.1	93	105	0.56
21309 CC	21309 CCK	45	100	25	1.5	100	115	0.95
22309 CC	22309 CCK	45	100	36	1.5	138	160	1.35
22309 E	22309 EK	45	100	36	1.5	164	183	1.35
22210 CC	22210 CCK	50	90	23	1.1	85	100	1
22210 E	22210 EK	50	90	23	1.1	97.8	118	1
21310 CC	21310 CCK	50	110	27	2	115	132	1
22310 CC	22310 CCK	50	110	40	2	176	198	1.85
22310 E	22310 EK	50	110	40	2	199	224	1.85
22211 CC	22211 CCK	55	100	25	1.5	99.5	120	0.82
22211 E	22211 EK	55	100	25	1.5	115	137	0.82
21311 CC	21311 CCK	55	120	29	2	135	163	2
22311 CC	22311 CCK	55	120	43	2	199	230	2.35
22311 E	22311 EK	55	120	43	2	235	278	2.35
22212 CC	22212 CCK	60	110	28	1.5	117	146	1
22212 E	22212 EK	60	110	28	1.5	140	173	1.15
21312 CC	21312 CCK	60	130	31	2.1	161	210	1.95
22312 CC	22312 CCK	60	130	46	2.1	234	280	2.95
22312 E	22312 EK	60	130	46	2.1	271	330	3
22213 CC	22213 CCK	65	120	31	1.5	148	183	1.45
22213 E	22213 EK	65	120	31	1.5	177	215	2
21313 CC	21313 CCK	65	140	33	2.1	184	240	2.45
22313 CC	22313 CCK	65	140	48	2.1	255	300	3.55
22313 E	22313 EK	65	140	48	2.1	300	361	3.55
22214 CC	22214 CCK	70	125	31	1.5	148	185	1.55
22214 E	22214 EK	70	125	31	1.5	180	228	1.55
21314 CC	21314 CCK	70	150	35	2.1	207	260	3
22314 CC/W33	22314 CCK/W33	70	150	51	2.1	312	380	4.3
22314 E	22314 EK	70	150	51	2.1	345	435	4.3
22215 CC	22215 CCK	75	130	31	1.5	158	208	1.65
22215 E	22215 EK	75	130	31	1.5	184	240	1.7
21315 CC	21315 CCK	75	160	37	2.1	236	300	3.55
22315 CC/W33	22315 CCK/W33	75	160	55	2.1	345	432	5.25
22315 E	22315 EK	75	160	55	2.1	385	475	5.25
