Your present location: HOME>>PRODUCTS>>Spherical Plain Bearing>>GE-ES-2RS

TONJO Spherical plain bearing

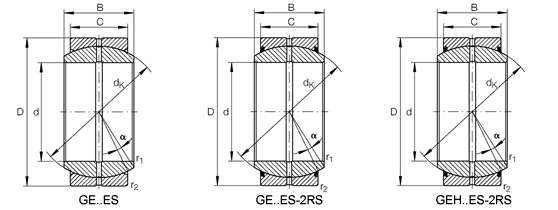

Designation Principal dimensions Basic load ratings Mass
d D B C dk r1 r2 α Dynamic Static
mm Deg. C (kN) C0 (kN) kg
GE4E
4 12 5 3 8 0.3 0.3 16 2.04 10.2 0.003
GE5E
5 14 6 4 10 0.3 0.3 13 3.4 17 0.004
GE6E
6 14 6 4 10 0.3 0.3 13 3.4 17 0.004
GE8E
8 16 8 5 13 0.3 0.3 15 5.5 27.5 0.006
GE10E
10 19 9 6 16 0.3 0.3 12 8.15 40.5 0.012
GE12E
12 22 10 7 18 0.3 0.3 10 10.8 54 0.017
GE15ES
15 26 12 9 22 0.3 0.3 8 17 85 0.032
GE15ES-2RS
15 26 12 9 22 0.3 0.3 8 17 85 0.032
GE17ES
17 30 14 10 25 0.3 0.3 10 21.2 106 0.05
GE17ES-2RS
17 30 14 10 25 0.3 0.3 10 21.2 106 0.05
GE20ES
20 35 16 12 29 0.3 0.3 9 30 146 0.065
GE20ES-2RS
20 35 16 12 29 0.3 0.3 9 30 146 0.065
GEH20ES-2RS
20 42 25 16 35.5 0.3 0.6 17 48 240 0.16
GE25ES
25 42 20 16 35.5 0.6 0.6 7 48 240 0.12
GE25ES-2RS
25 42 20 16 35.5 0.6 0.6 7 48 240 0.12
GEH25ES-2RS
25 47 28 18 40.7 0.6 0.6 17 62 310 0.2
GE30ES
30 47 22 18 40.7 0.6 0.6 6 62 310 0.16
GE30ES-2RS
30 47 22 18 40.7 0.6 0.6 6 62 310 0.16
GEH30ES-2RS
30 55 32 20 47 0.6 1 17 80 400 0.35
GE35ES
35 55 25 20 47 0.6 1 6 80 400 0.23
GE35ES-2RS
35 55 25 20 47 0.6 1 6 80 400 0.23
GEH35ES-2RS
35 62 36 22 53 0.6 1 15 100 500 0.47
GE40ES
40 62 28 22 53 0.6 1 7 100 500 0.32
GE40ES-2RS
40 62 28 22 53 0.6 1 6 100 500 0.32
GEH40ES-2RS
40 68 40 25 60 0.6 1 17 127 640 0.61
GE45ES
45 68 32 25 60 0.6 1 7 127 640 0.46
GE45ES-2RS
45 68 32 25 60 0.6 1 7 127 640 0.46
GEH45ES-2RS
45 75 43 28 66 0.6 1 14 156 780 0.6
GE50ES
50 75 35 28 66 0.6 1 6 156 780 0.56
GE50ES-2RS
50 75 35 28 66 0.6 1 6 156 780 0.56
GEH50ES-2RS
50 90 56 36 80 0.6 1 17 245 1220 1.6
GE60ES
60 90 44 36 80 1 1 6 245 1220 1.1
GE60ES-2RS
60 90 44 36 80 1 1 6 245 1220 1.1
GEH60ES-2RS
60 105 63 40 92 1 1 17 315 1560 2.4
GE70ES
70 105 49 40 92 1 1 6 315 1560 1.55
GE70ES-2RS
70 105 49 40 92 1 1 6 315 1560 1.55
GEH70ES-2RS
70 120 70 45 105 1 1 16 400 2000 3.4
GE80ES
80 120 55 45 105 1 1 6 400 2000 2.3
GE80ES-2RS
80 120 55 45 105 1 1 5 400 2000 2.3
GEH80ES-2RS
80 130 75 50 115 1 1 14 490 2450 4.1
GE90ES
90 130 60 50 115 1 1 5 490 2450 2.75
GE90ES-2RS
90 130 60 50 115 1 1 5 490 2450 2.75
GEH90ES-2RS
90 150 85 55 130 1 1 15 610 3050 6.3
