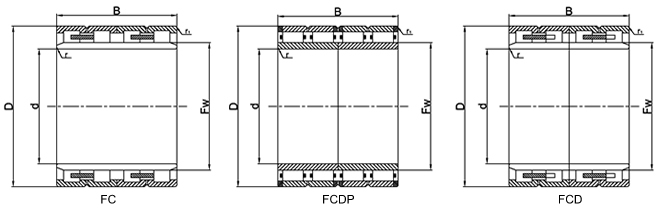

TONJO Four-row cylindrical roller bearing

Designation Principal dimensions Basic load ratings
dynamic static
d D B r r1 Cr C0r
mm kN
FC182870
 90 140 70 1.1 1.5 345 820
FC2028104
 100 140 104 1.5 1.1 335 730
FC202870
 100 140 70 1.5 1.1 209 435
FC202970
 100 145 70 1.5 1.1 218 432
FC2030106
 100 150 106 1.5 1.1 - -
FC2234120
 110 170 120 2 2 605 1060
FC2436105
 120 180 105 2 2 612 930
FC2640125
 130 200 125 2 2 738 1220
FC2842125
 140 210 125 2 2 718 1150
FC2842155
 140 210 155 2 2 - -
FC2942155
 145 210 155 2 2 578 1590
FC2945156
 145 225 156 2 2 838 1690
FC3045120
 150 225 120 2 2 788 1290
FC3045156
 150 230 156 2 2 840 1760
FC3245130
 160 230 130 1.5 1.5 742 1705
FC3246168
 160 230 168 2.1 2.1 852 2170
FC3248168
 160 240 168 2.1 2.1 942 1950
FC3248124
 160 240 124 2.1 2.1 690 1310
FC3446160
 170 230 160 2 2 1210 2360
FC3450170
 170 250 170 2.1 2.1 1070 2080
FC3452120
 170 260 120 2.1 2.1 648 1020
FC3650156
 180 250 156 2.1 2.1 1210 1770
FC3652124
 180 260 124 2.1 2.1 809 1730
FC3642168
 180 260 168 2.1 2.1 1050 2170
FC3656180
 180 280 180 2.1 2.1 1460 2340
FC3854168
 190 270 168 2.1 2.1 1420 2430
FC3854170
 190 270 170 2.1 2.1 1430 2430
FC3852168
 190 260 168 2.1 2.1 755 2440
FC3854200
 190 270 200 2.1 2.1 1360 3200
FC3856200
 190 280 200 2.1 2.1 - -
FC4054170
 200 270 170 2.1 2.1 1120 2270
FC4056200
 200 280 200 2.1 2.1 1340 3320
FC4056188
 200 280 188 2.1 2.1 1430 2580
FC4058192
 200 290 192 2.1 2.1 1230 2820
FC4064216
 200 320 216 2.1 2.1 - -
FC4260210
 210 300 210 2.1 2.1 1540 3400
FC4468200
 220 340 200 4 4 1950 3550
FC4462192
 220 310 192 2.1 2.1 1230 3120
FC4462225
 220 310 225 2.1 2.1 1850 4050
FC4464210
 220 320 210 2.1 2.1 1510 3330
FC4666206
 230 330 206 2.1 2.1 1350 3510
FCD4668260
 230 340 260 2.1 2.1 2000 4400
FC4866220
 240 330 220 2.1 2.1 1780 4850
FC4868192
 240 340 192 2.1 2.1 1540 3650
FC4872220
 240 360 220 2.1 2.1 2070 3860
FCD5068230
 250 340 230 3.5 3.5 - -
FC5070220
 250 350 220 3 3 1610 4210
FC5072220
 250 360 220 3 3 1650 4250
