Your present location: HOME>>PRODUCTS>>Spherical Plain Bearing>>GE-FW-2RS

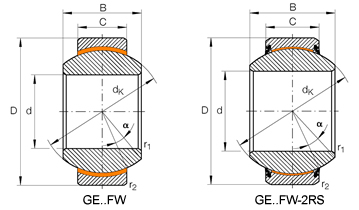

TONJO Spherical plain bearing

Designation Principal dimensions Basic load ratings Mass
d D B C dk r1 r2 α Dynamic Static
mm Deg. C (kN) C0 (kN) kg
GE6FW
 6 16 9 5 13 0.3 0.3 21 5.85 146 0.009
GE8FW
 8 19 11 6 16 0.3 0.3 21 8.65 21.6 0.014
GE10FW
 10 22 12 7 18 0.3 0.3 18 11.4 28.5 0.02
GE12FW
 12 26 15 9 22 0.3 0.3 18 17.6 44 0.036
GE15FW
 15 30 16 10 25 0.3 0.3 16 22.4 56 0.049
GE17FW
 17 35 20 12 29 0.3 0.3 19 31.5 78 0.082
GE20FW
 20 42 25 16 35.5 0.6 0.6 17 51 127 0.16
GE25FW
 25 47 28 18 40.7 0.6 0.6 17 65.5 166 0.2
GE30FW-2RS
 30 55 32 20 47 0.6 1 17 210 350 0.28
GE35FW-2RS
 35 62 35 22 53 0.6 1 16 277 462 0.38
GE40FW-2RS
 40 68 40 25 60 0.6 1 17 360 600 0.53
GE45FW-2RS
 45 75 43 28 66 0.6 1 15 442 737 0.67
GE50FW-2RS
 50 90 56 36 80 0.6 1 17 690 1150 1.4
GE60FW-2RS
 60 105 63 40 92 1 1 17 885 1475 2.1
GE70FW-2RS
 70 120 70 45 105 1 1 16 1125 1875 3
GE80FW-2RS
 80 130 75 50 115 1 1 14 1380 2300 3.6
GE90FW-2RS
 90 150 85 55 130 1 1 15 1717 2862 5.3
GE100FW-2RS
 100 160 85 55 140 1 1 14 1845 3075 6
GE110FW-2RS
 110 180 100 70 160 1 1 12 2685 4475 9.8
GE120FW-2RS
 120 210 115 70 180 1 1 16 3015 5025 14.6
GE140FW-2RS
 140 230 130 80 200 1 1 16 3840 6400 18.6
GE160FW-2RS
 160 260 135 80 225 1 1.1 16 4320 7200 24.9
GE180FW-2RS
 180 290 155 100 250 1.1 1.1 14 6000 10000 33.6
GE200FW-2RS
 200 320 165 100 275 1.1 1.1 15 6600 11000 44.7
GE220FW-2RS
 220 340 175 100 300 1.1 1.1 16 7200 12000 50.8
GE240FW-2RS
 240 370 190 110 325 1.1 1.1 15 8550 14250 64
GE260FW-2RS
 260 400 205 120 350 1.1 1.1 15 10050 16750 81.8
GE280FW-2RS
 280 430 210 120 375 1.1 1.1 15 10800 18000 96.5
