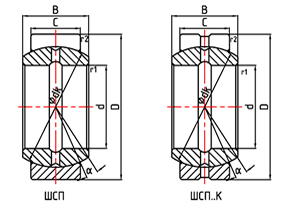

TONJO Spherical plain bearing

Designation	Principal dimensions								Basic load ratings		Mass
	d	D	B	C	dk	r1	r2	α	Dynamic	Static
	mm							Deg.	C (kN)	C0 (kN)	kg

ШСП4 WCN4	4	12	5	3	8	0.3	0.3	16	2	10	0.003
ШСП5 WCN5	5	14	6	4	10	0.3	0.3	13	3	17	0.005
ШСП6 WCN6	6	14	6	4	10	0.3	0.3	13	3	17	0.005
ЕШСП8 EWCN8	8	16	8	5	13	0.3	0.3	15	5	27	0.008
ЕШСП10 EWCN10	10	19	9	6	16	0.3	0.3	12	8	40	0.012
ШСП12 WCN12	12	22	10	7	18	0.3	0.3	10	10	53	0.016
ЕШСП15 EWCN15	15	26	12	9	22	0.3	0.3	8	16	84	0.035
ЕШСП17 EWCN17	17	30	14	10	25	0.3	0.3	10	21	106	0.048
ШСП20 WCN20	20	35	16	12	29	0.3	0.3	9	29	147	0.065
ШСП25 WCN25	25	42	20	16	35	0.6	0.6	7	47	238	0.115
ШСП30 WCN30	30	47	22	18	40	0.6	0.6	6	61	306	0.016
ЕШСП35 EWCN35	35	55	25	20	47	0.6	1	6	79	399	0.236
ШСП40 WCN40	40	62	28	22	53	0.6	1	7	99	495	0.33
ЕШСП45 EWCN45	45	68	32	26	60	0.6	1	6	132	663	0.43
ШСП50 WCN50	50	75	35	28	66	0.6	1	6	157	785	0.66
ШСП55 WCN55	55	85	40	32	74	0.6	1	7	201	1006	0.088
ЕШСП60 EWCN60	60	90	44	36	80	1	1	6	244	1224	1.1
ШСП70 WCN70	70	105	49	40	92	1	1	6	312	1564	1.59
ШСП80 WCN80	80	120	55	46	105	1	1	5	410	2067	2.33
ШСП90 WCN90	90	130	60	50	115	1	1	5	488	2461	2.82
ШСП100 WCN100	100	150	70	55	130	1	1	7	607	3060	4.48
ШСП110 WCN110	110	160	70	55	140	1	1	6	654	3295	4.9
ШСП120 WCN120	120	180	85	70	160	1	1	6	952	4793	8.19
ШСП140 WCN140	140	210	90	70	180	1	1	7	1071	5392	11.113
ШСП160 WCN160	160	230	105	80	200	1	1	8	1360	6880	14.062
ШСП180 WCN180	180	260	105	80	225	1.1	1.1	6	1530	7740	18.598
ШСП200 WCN200	200	290	130	100	250	1.1	1.1	7	2125	10750	27.896
ШСП220 WCN220	220	320	135	100	275	1.1	1.1	8	2337	11825	35.608
ШСП240 WCN240	240	340	140	100	300	1.1	1.1	8	2550	12900	39.917
ШСП260 WCN260	260	370	150	110	325	1.1	1.1	7	3038	15372	52.164
ШСП280 WCN280	280	400	155	120	350	1.1	1.1	6	3570	18060	63.772
ШСП300 WCN300	300	430	165	120	375	1.1	1.1	7	3825	19350	79.38
ШСП8 WCN8	8	17	8	5	13	0.5	0.5	15	5	27	0.008
ШСП10 WCN10	10	20	9	6	16	0.5	0.5	12	8	40	0.012
ШСП15 WCN15	15	28	12	8	23	0.5	1	11	15	78	0.033
ШСП17 WCN17	17	32	14	10	26	0.5	1	9	22	110	0.048
ШСП35 WCN35	35	55	26	21	47	1	1.5	7	83	419	0.236
ШСП45 WCN45	45	70	32	25	60	1.5	2	7	127	637	0.46
ШСП60 WCN60	60	90	44	34	80	1.5	2	8	231	1156	0.98
ШСП80 WCN80	80	125	76	70	114	1.5	2	4	675	3390	3.8
2ШСП10 2WCN10	10	30	14	10	22	0.5	1	12	18	93	0.052
2ШСП12 2WCN12	12	32	16	12	24	0.5	1	11	24	122	0.065
2ШСП15 2WCN15	15	35	18	14	27	0.5	1	10	32	160	0.082
2ШСП17 2WCN17	17	40	21	14	31	0.5	1	15	36	184	0.148
2ШСП20 2WCN20	20	47	26	15	35	0.5	1	22	44	223	0.198
2ШСП25 2WCN25	25	52	28	15	40	1	1.5	22	51	255	0.262
